Physical Inspection & Instant Pickup Available
Visit our Rajshahi Alokar Mor showroom to test this product in-person with official brand warranty verification.
ASUS

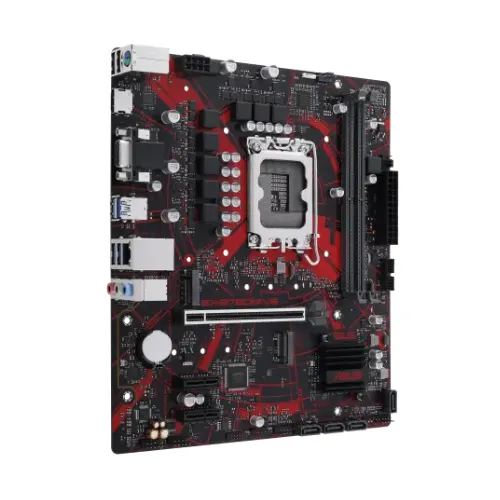

ASUS EX-B760M-V5 D4 mATX Motherboard
3 Years
৳ 16,300
৳ 18,000
Save ৳ 1,700
Key Highlights
Essential Specs
•
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। আই টি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে, যেকোন আই টি পণ্যের মূল্য পরিবর্তন হতে পারে।
যোগাযোগের নাম্বারঃ 01612030350
Rajshahi City: ৳60
Same-day or 24h express home delivery
Outside Rajshahi: ৳120
Sundarban, Steadfast, SA Paribahan courier
Detailed Technical Specifications
General Specification
Brand
Asus
Model
EX-B760M-V5 D4
Warranty
3 Years
Supported CPU
Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors, Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset
Intel B760 Chipset
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form Factor
mATX Form Factor 9.6 inch x 8.3 inch(24.4cm x 21.1cm)
Audio
- Audio Shielding, - Dedicated audio PCB layers, - Premium audio capacitors, - Supports up to 24-Bit/192 kHz playback / Audio Features, - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Realtek 7.1 Surround Sound High Definition Audio CODEC*
PCI
Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x1 slots
M.2 Socket
2 x M.2 slots
Memory Type
DDR4
Memory Slots
2x DIMM
Supported Memory
5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*, Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory
Max. 64GB
Graphics
Supports 4K@60Hz as specified in HDMI 2.1.
HDMI
1 x HDMI port
VGA (s)
1 x VGA port
USB (s)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports)
LAN Port (s)
1 x Realtek 2.5Gb Ethernet port
Supported Storage
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s port, Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Processors (14th & 13th & 12th Gen)
RAID
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio Jack
3x Audio jacks

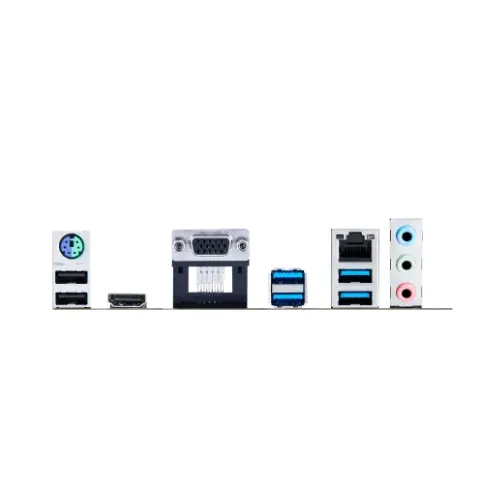

Internal I/O Ports
1 x 10-1 pin System Panel header, 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x Speaker header, 1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports Miscellaneous, Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related, Internal I/O Connectors
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O, ASUS EZ DIY - ProCool, ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core, Non-stop Action - Lightning Boot, Non-stop Challenger - ASUS iCafe labs certified, Non-stop Durability - Luminous anti-moisture coating - USBGuard
