Gigabyte

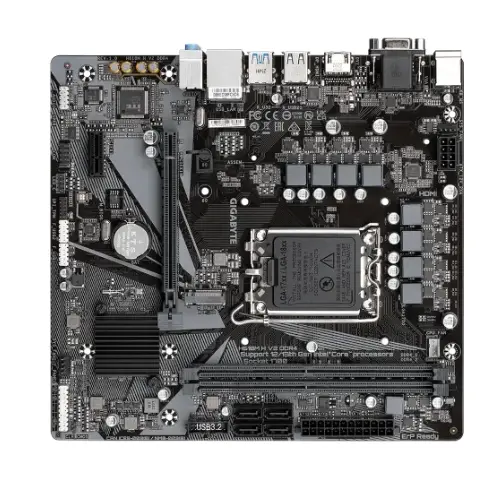

GIGABYTE H610M H V2 DDR4 Micro ATX Motherboard
03 years
৳ 10,800
৳ 11,500
Save ৳ 700
Key Highlights
Essential Specs
•
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। আই টি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে, যেকোন আই টি পণ্যের মূল্য পরিবর্তন হতে পারে।
যোগাযোগের নাম্বারঃ 01612030350
Rajshahi City: ৳60
Same-day or 24h express home delivery
Outside Rajshahi: ৳120
Sundarban, Steadfast, SA Paribahan courier
Detailed Technical Specifications
General Specification
Supported CPU
LGA1700 socket: Support for 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset
Intel H610 Express Chipset
BIOS
1 x 256 Mbit flash, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, Use of licensed AMI UEFI BIOS
Form Factor
Micro ATX Form Factor; 23.0cm x 21.5cm
Audio
2/4/5.1/7.1-channel, High Definition Audio, Realtek Audio CODEC
PCI
Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1, CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Memory Type
DDR4
Memory Slots
2 x DDR DIMM sockets
Supported Memory
3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules, Dual Channel Memory Architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for Extreme Memory Profile (XMP) memory modules, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Maximum Memory
Up to 64 GB (32 GB single DIMM capacity) of system memory
Graphics
** Support native HDMI 2.1 TMDS compatible ports, 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3., Integrated Graphics Processor-Intel HD Graphics support:
HDMI
1 x HDMI 2.0 port
D-Sub (s)
1 x D-Sub port

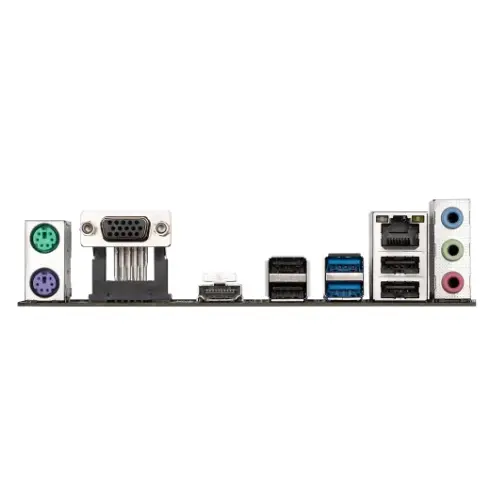

USB (s)
4 x USB 2.0/1.1 ports on the back panel, Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers, Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s)
Intel GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage
4 x SATA 6Gb/s connectors, Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)
Audio Jack
3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x Clear CMOS jumper, 1 x CPU fan header, 1 x front panel audio header, 1 x front panel header, 1 x M.2 Socket 3 connector, 1 x RGB LED strip header, 1 x serial port header, 1 x USB 3.2 Gen 1 header, 2 x system fan headers, 2 x USB 2.0/1.1 headers, 4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Special Features
* * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications., @BIOS, Ambient LED, EasyTune, Smart Backup, Support for APP Center, Support for Q-Flash, Support for Xpress Install, System Information Viewer
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Manufacturing Warranty
03 years
