/ Products / Motherboard / Asus PRIME B760M-K mATX Motherboard

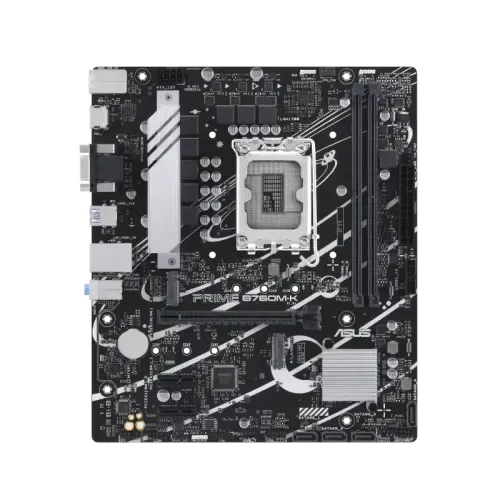

Asus PRIME B760M-K mATX Motherboard
Physical Inspection & Instant Pickup Available Visit our Rajshahi Alokar Mor showroom to test this product in-person with official brand warranty verification.
ASUS

Asus PRIME B760M-K mATX Motherboard

3 Years
৳ 17,200 ৳ 19,000 Save ৳ 1,800

Key Highlights

Essential Specs
Brand: Asus
Model: PRIME B760M-K
Supported CPU: Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors, Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset: Intel B760 Chipset
•

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। আই টি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে, যেকোন আই টি পণ্যের মূল্য পরিবর্তন হতে পারে।

যোগাযোগের নাম্বারঃ 01612030350
Rajshahi City: ৳60 Same-day or 24h express home delivery
Outside Rajshahi: ৳120 Sundarban, Steadfast, SA Paribahan courier

Detailed Technical Specifications

General Specification
Brand
Asus
Model
PRIME B760M-K
Warranty
3 Years
Supported CPU
Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors, Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset
Intel B760 Chipset
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form Factor
mATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Audio
- Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers, - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback, Audio Features, Realtek 7.1 Surround Sound High Definition Audio CODEC*
PCI
Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot, Intel B760 Chipset 2 x PCIe 4.0 x1 slots
Memory Type
DDR 5
Memory Slots
2 x DIMM
Supported Memory
buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP), DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-
Maximum Memory
Max. 64GB
Graphics
1 x HDMI port, 1 x VGA port
HDMI
1 x HDMI port
VGA (s)
1 x VGA port
USB (s)

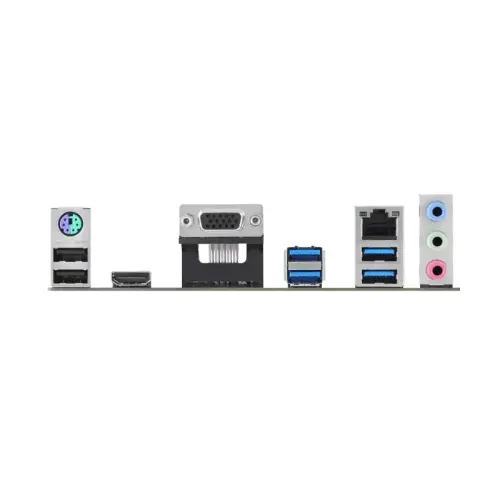

Front USB (Total 5 ports) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports, Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A)
LAN Port (s)
1 x Realtek 2.5Gb Ethernet
Supported Storage
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset, M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports, Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors
RAID
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio Jack
3 x audio jacks
Internal I/O Ports
1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header, Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header, Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header, Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector, Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports, USB 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1pin)
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O, ASUS EZ DIY - ProCool, ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot, ASUS Thermal Solution - VRM heatsink design, Aura Sync - Aura RGB header - Addressable Gen 2 headers
Bundled Software
AI Suite 3 - DIGI+ VRM - PC Cleaner, Armoury Crate - Aura Sync - Fan Xpert - Power Saving, ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS, ASUS Exclusive Software, ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
