AMD

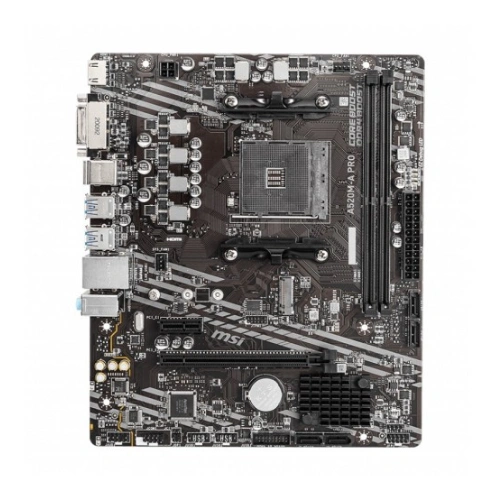

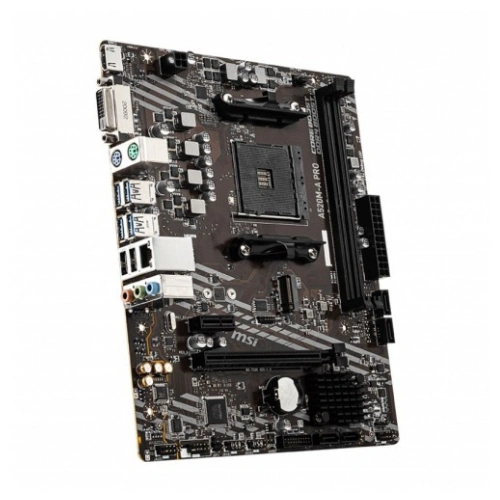

MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard
03 years
৳ 8,000
৳ 8,500
Save ৳ 500
Key Highlights
Essential Specs
•
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। আই টি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে, যেকোন আই টি পণ্যের মূল্য পরিবর্তন হতে পারে।
যোগাযোগের নাম্বারঃ 01612030350
Rajshahi City: ৳60
Same-day or 24h express home delivery
Outside Rajshahi: ৳120
Sundarban, Steadfast, SA Paribahan courier
Detailed Technical Specifications
General Specification
Supported CPU
AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset
AMD B520
Form Factor
Micro-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
PCI
1x PCIe 3.0 x1 slot 1x PCIe x16 slot
M.2 Socket
1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0, Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
Memory Type
Dual-channel memory architecture
Memory Slots
2x DDR4 memory slots
Supported Memory
1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz, Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC, Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE, Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode), Supports un-buffered memory
Maximum Memory
64GB
Graphics
1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz, 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Max Shared Memory
16GB
HDMI
1x HDMI 2.1 port, maximum resolution of 4096x2160 @60Hz
DVI-D (s)
1x DVI-D port, maximum resolution of 1920x1200@60Hz

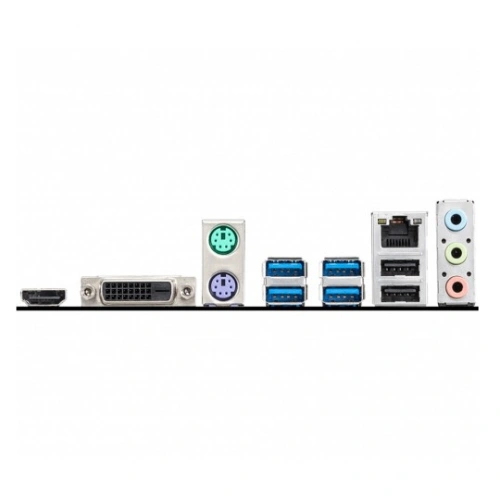

USB (s)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors), AMD A520 Chipset 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector, AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s)
1x Realtek RTL8111H Gigabit LAN controller
Supported Storage
1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0, AMD A520 Chipset 4x SATA 6Gb/s ports, Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
Audio
Realtek ALC892 Codec 7.1-Channel High Definition Audio
Internal I/O Ports
1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key), 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector, 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper
TPM (Trusted Platform Module )
1xTPM module connector
Special Features
RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices, Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Manufacturing Warranty
03 years
